CONN D-SUB HD PLUG 26P R/A SLDR

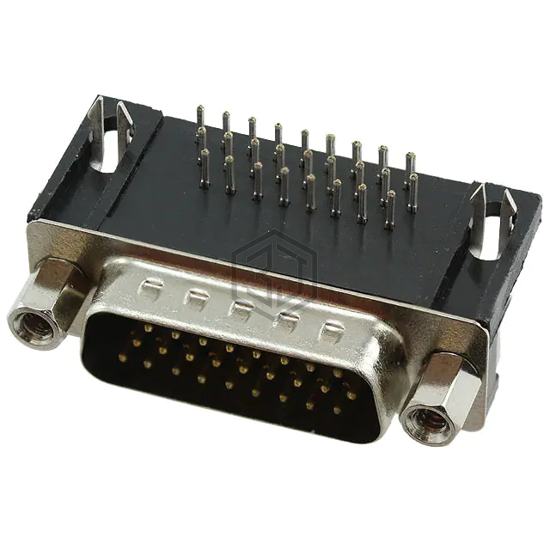

10090926-P264VLF is a D-Sub Connectors manufactured by Amphenol ICC (FCI). CONN D-SUB HD PLUG 26P R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 2.5A per Contact, termination Solder, number of positions 26.
In Stock: 3,177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2.5A per Contact |
| Backset Spacing | 0.350" (8.89mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
Submit your RFQ for 10090926-P264VLF and get a quote within 24 hours.
