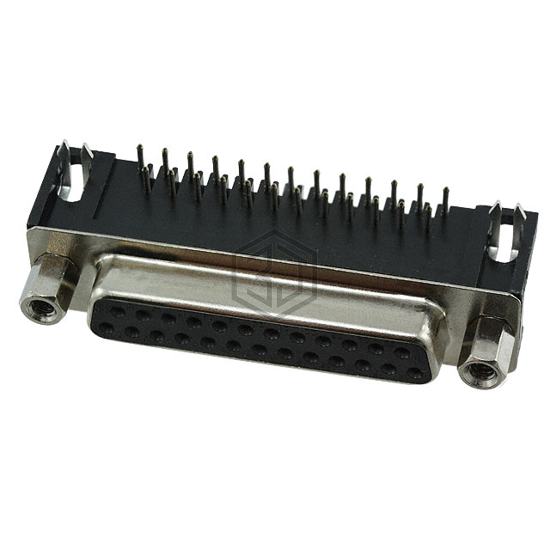

CONN D-SUB RCPT 25POS R/A SLDR
10090099-S254VLF is a D-Sub Connectors manufactured by Amphenol ICC (FCI). CONN D-SUB RCPT 25POS R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 5A per Contact, termination Solder, number of positions 25.
In Stock: 417
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A per Contact |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock, Mounting Brackets |
Submit your RFQ for 10090099-S254VLF and get a quote within 24 hours.
