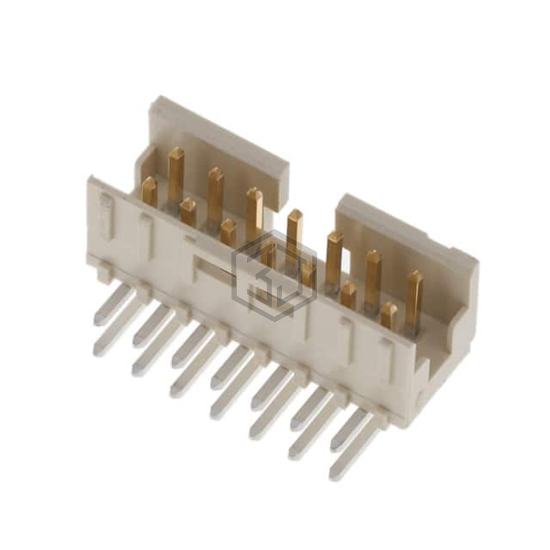

CONN HEADER R/A 14POS 2MM
10072354-F01-14ULF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER R/A 14POS 2MM. Key specifications: mounting type Through Hole, Right Angle, voltage rating 200V (AC/DC), contact material Copper Alloy, current rating (amps) 3A.
In Stock: 2,095
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.079" (2.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.240" (6.10mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Keying Slot |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Cream |
| Current Rating (Amps) | 3A |
| Voltage Rating | 200V (AC/DC) |
Submit your RFQ for 10072354-F01-14ULF and get a quote within 24 hours.
