Amphenol ICC (Commercial Products)

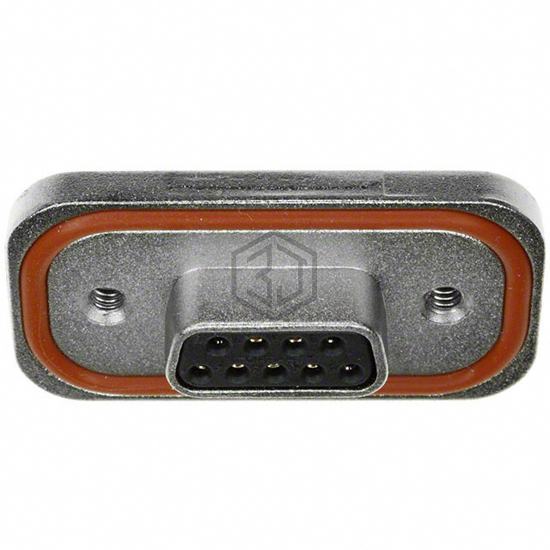

CONN D-SUB RCPT 9P PNL MNT SLDR
MDBE09SE860 is a D-Sub Connectors manufactured by Amphenol ICC (Commercial Products). CONN D-SUB RCPT 9P PNL MNT SLDR. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 5A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 342
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Board Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Zinc, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | - |
| Features | Board Lock |
Submit your RFQ for MDBE09SE860 and get a quote within 24 hours.
