Amphenol ICC (Commercial Products)
CONN D-SUB HD RCPT 44P VERT SLDR

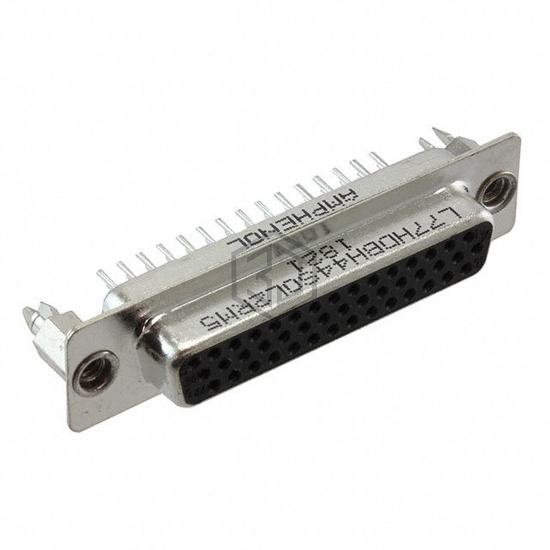

L77HDBH44SOL2RM5 is a D-Sub Connectors manufactured by Amphenol ICC (Commercial Products). CONN D-SUB HD RCPT 44P VERT SLDR. Key specifications: mounting type Through Hole, current rating (amps) 3A, termination Solder, number of positions 44.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) High Density |
| Contact Type | Signal |
| Flange Feature | Board Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | Board Lock |
Submit your RFQ for L77HDBH44SOL2RM5 and get a quote within 24 hours.
