Amphenol ICC (Commercial Products)

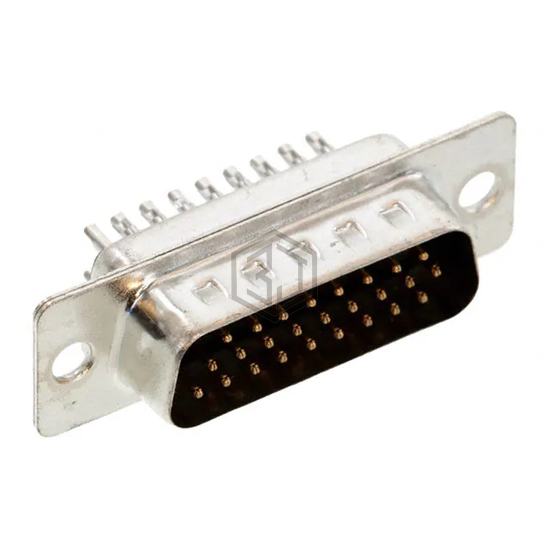

CONN D-SUB HD PLUG 26P SLDR CUP
L717HDA26P is a D-Sub Connectors manufactured by Amphenol ICC (Commercial Products). CONN D-SUB HD PLUG 26P SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 3A, termination Solder Cup, number of positions 26.
In Stock: 306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | Grounding Indents |
