Amphenol ICC (Commercial Products)

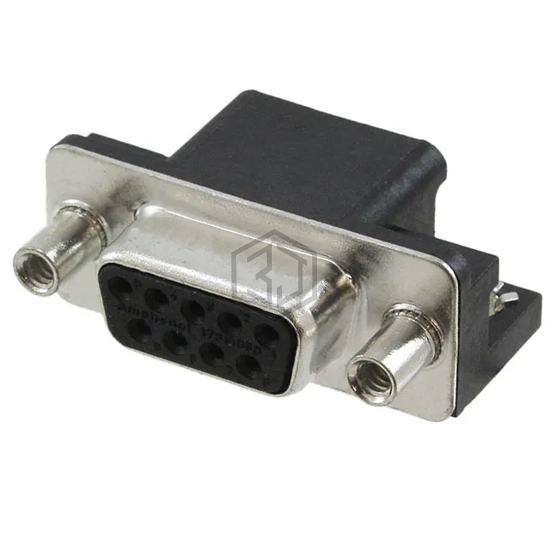

CONN D-SUB RCPT 9P SMD R/A SLDR
L17SM209SB64T is a D-Sub Connectors manufactured by Amphenol ICC (Commercial Products). CONN D-SUB RCPT 9P SMD R/A SLDR. Key specifications: mounting type Surface Mount, Right Angle, current rating (amps) 3A, termination Solder, number of positions 9.
In Stock: 959
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Surface Mount, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 31.5µin (0.80µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | Board Lock |
