Amphenol ICC (Commercial Products)
DSUB, MACHINED SIGNAL 5A, IP67,

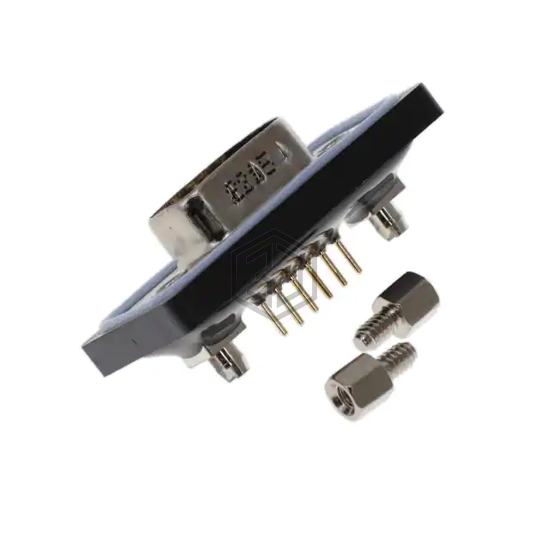

L17EHD15P20 is a D-Sub Connectors manufactured by Amphenol ICC (Commercial Products). DSUB, MACHINED SIGNAL 5A, IP67,. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 5A, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | - |
| Features | Board Lock |
Submit your RFQ for L17EHD15P20 and get a quote within 24 hours.
