Amphenol ICC (Commercial Products)
PROTECT HEADER 2.0MM PITCH R/A,2

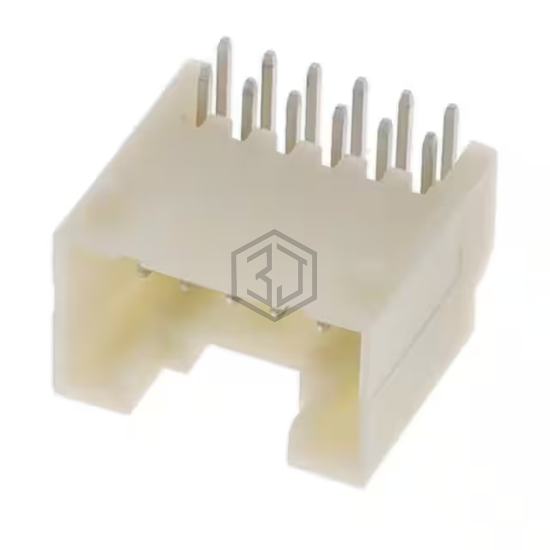

G86112121S2HR is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (Commercial Products). PROTECT HEADER 2.0MM PITCH R/A,2. Key specifications: mounting type Through Hole, Right Angle, contact material Copper Alloy, termination Solder, number of positions 12.
In Stock: 389
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.335" (8.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA4T), Nylon 4T |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for G86112121S2HR and get a quote within 24 hours.
