Amphenol ICC (Commercial Products)
PIN HEADER 2.0MM PITCH STR,SMT,2

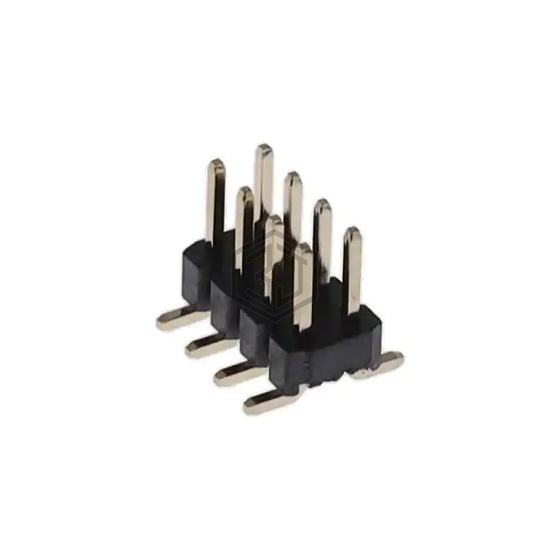

G825M08401YEU is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (Commercial Products). PIN HEADER 2.0MM PITCH STR,SMT,2. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 250VDC, contact material Copper Alloy.
In Stock: 3,038
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.079" (2.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 250VDC |
