Amphenol ICC (Commercial Products)

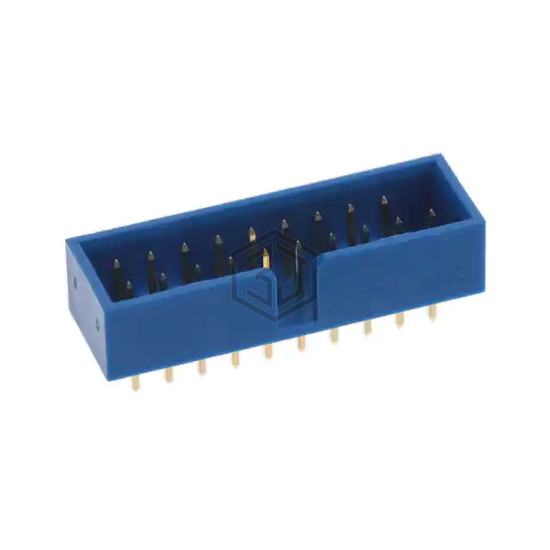

BOX HEADER FOR USB 3.0,2.0MM PIT
G823J201240BHR is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (Commercial Products). BOX HEADER FOR USB 3.0,2.0MM PIT. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 250VDC, contact material Copper Alloy.
In Stock: 1,508
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 19 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.098" (2.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.197" (5.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Features | Keying Slot |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 250VDC |
Submit your RFQ for G823J201240BHR and get a quote within 24 hours.
