Amphenol ICC (Commercial Products)
BOX HEADER 2.54MM*2.54MM PITCH S

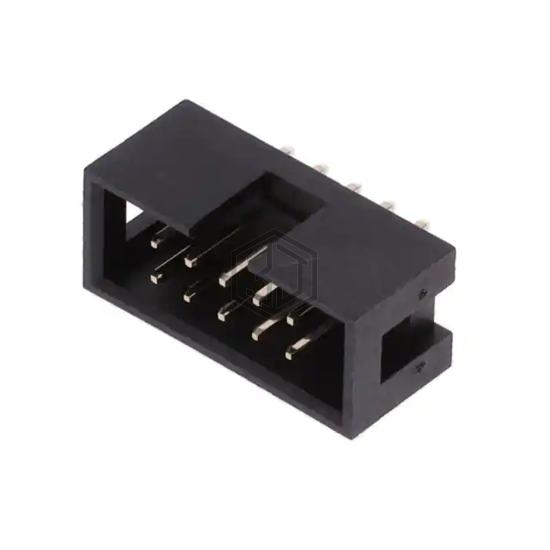

G821EU210AGM00Y is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (Commercial Products). BOX HEADER 2.54MM*2.54MM PITCH S. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 250VDC, contact material Brass.
In Stock: 1,301
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.358" (9.10mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | Keying Slot |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250VDC |
Submit your RFQ for G821EU210AGM00Y and get a quote within 24 hours.
