NU 3.5 4P COLOR YELLOW SIDE COVE

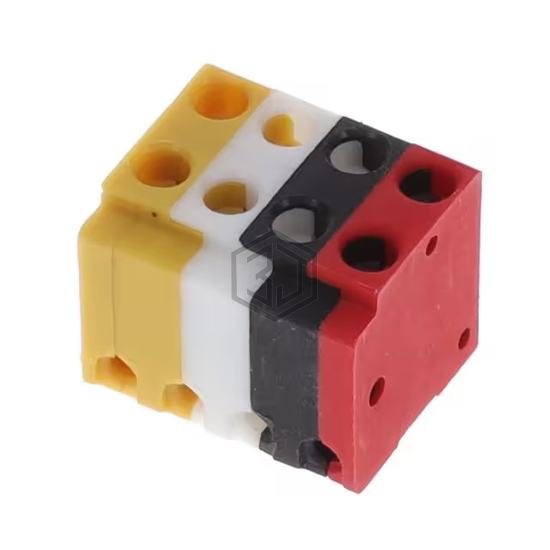

NU0400C0001AG is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Amphenol Anytek. NU 3.5 4P COLOR YELLOW SIDE COVE. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 115°C, color Multiple, termination style Screwless - Spring Cage, Tension Clamp.
In Stock: 1,551
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug for Unshrouded Header |
| Number of Positions | 4 (Mate), 8 (Input) |
| Positions Per Level | 4 (Mate), 8 (Input) |
| Number of Levels | 1 (Mate), 2 (Input) |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 2 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 20-26 AWG |
| Wire Gauge or Range - mm² | - |
| Color | Multiple |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Tin |
| Features | - |
Submit your RFQ for NU0400C0001AG and get a quote within 24 hours.
