NS- 5.75 -2P BLACK + RED BODY WH

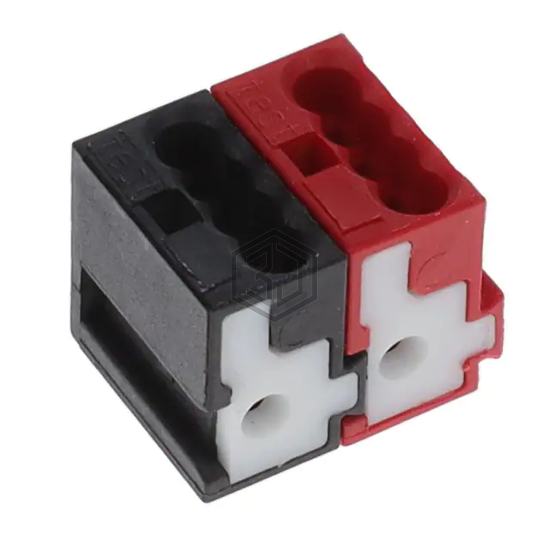

NS0200C0001AG is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Amphenol Anytek. NS- 5.75 -2P BLACK + RED BODY WH. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 115°C, color White, termination style Screwless - Spring Cage, Tension Clamp.
In Stock: 575
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug for Unshrouded Header |
| Number of Positions | 2 (Mate), 4 (Input) |
| Positions Per Level | 2 (Mate), 4 (Input) |
| Number of Levels | 1 |
| Pitch | 0.079" (2.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 7 A |
| Voltage - UL | 150 V |
| Wire Gauge or Range - AWG | 18-22 AWG |
| Wire Gauge or Range - mm² | - |
| Color | White |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Tin |
| Features | - |
Submit your RFQ for NS0200C0001AG and get a quote within 24 hours.
