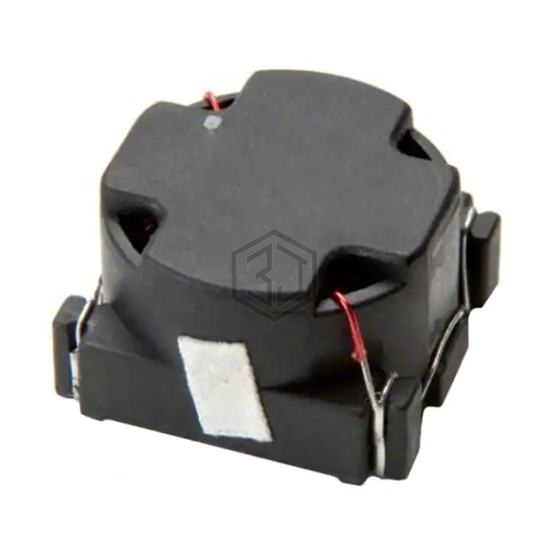

FIXED IND 330UH 900MA 740MOHM SM
SH50S-0.9-330 is a Fixed Inductors manufactured by Amgis, LLC. FIXED IND 330UH 900MA 740MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 2,210
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 740mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.701" L x 0.669" W (17.80mm x 17.00mm) |
| Height - Seated (Max) | 0.451" (11.45mm) |
Submit your RFQ for SH50S-0.9-330 and get a quote within 24 hours.
