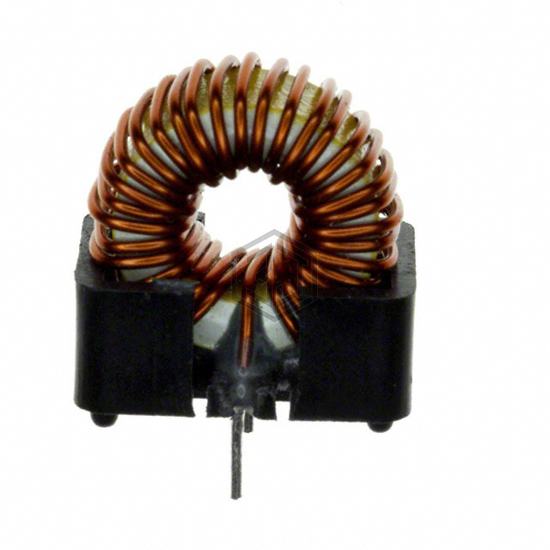

FIXED IND 47UH 3A 50 MOHM TH
SH50C-3.0-47 is a Fixed Inductors manufactured by Amgis, LLC. FIXED IND 47UH 3A 50 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical (Open), current rating (amps) 3 A.
In Stock: 1,730
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.650" L x 0.449" W (16.50mm x 11.40mm) |
| Height - Seated (Max) | 0.760" (19.30mm) |
Submit your RFQ for SH50C-3.0-47 and get a quote within 24 hours.
