FIXED IND 700NH 619MA 320MOHM SM

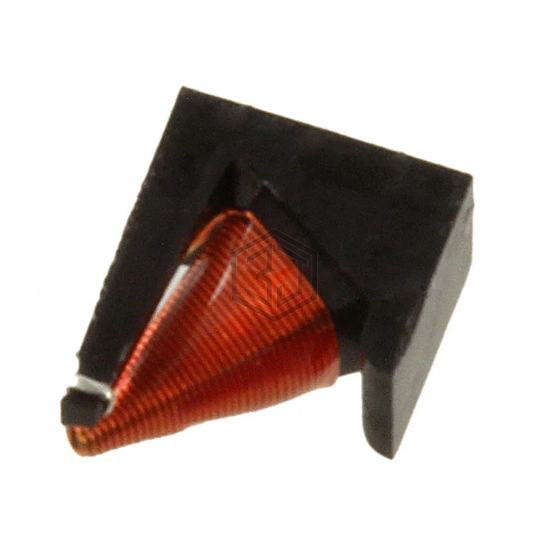

506WLSM0R70KT619T is a Fixed Inductors manufactured by American Technical Ceramics. FIXED IND 700NH 619MA 320MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 619 mA.
In Stock: 2,568
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 700 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 619 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 320mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.127" L x 0.080" W (3.23mm x 2.03mm) |
| Height - Seated (Max) | 0.105" (2.67mm) |
Submit your RFQ for 506WLSM0R70KT619T and get a quote within 24 hours.
