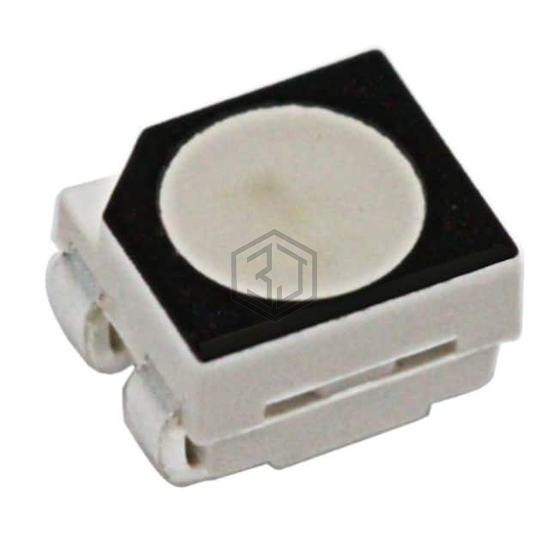

3.5X2.8X1.9MM PLCC4 SMD- RGB
L955QEQPGQBC is a LED Indication - Discrete manufactured by American Opto Plus LED. 3.5X2.8X1.9MM PLCC4 SMD- RGB. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 3.2V Green, 3.2V Blue, package / case 4-PLCC, color Red, Green, Blue (RGB).
In Stock: 494
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 850mcd Red, 1500mcd Green, 330mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | 635nm Red, 525nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.20mm |
Submit your RFQ for L955QEQPGQBC and get a quote within 24 hours.
