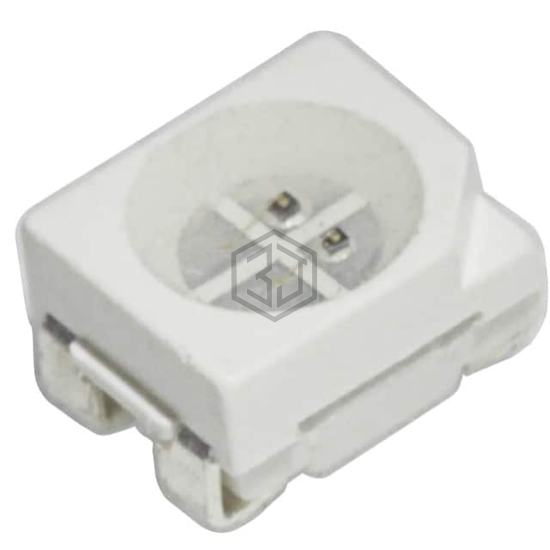

3.5X2.8X1.9MM PLCC4 SMD -RG
L955QEQGC-TR is a LED Indication - Discrete manufactured by American Opto Plus LED. 3.5X2.8X1.9MM PLCC4 SMD -RG. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Green, 2V Red, package / case 4-SMD, J-Lead, color Green, Red.
In Stock: 7,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 80mcd Green, 80mcd Red |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 640nm Red |
| Wavelength - Peak | 572nm Green, 650nm Red |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 2.05mm |
