3.5X2.8X1.9MM PLCC4 SMD -BG

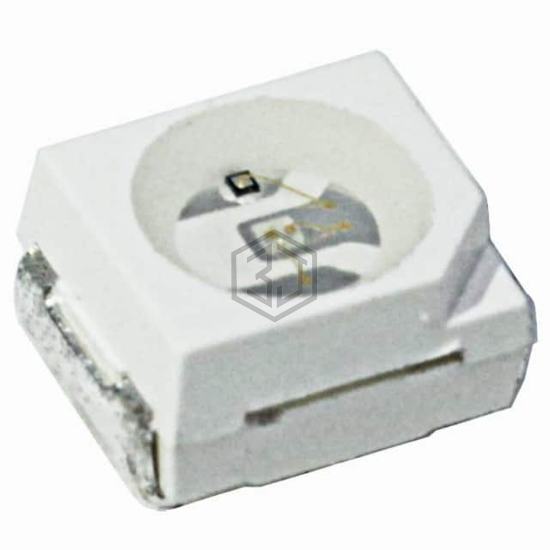

L955QBTGC-2 is a LED Indication - Discrete manufactured by American Opto Plus LED. 3.5X2.8X1.9MM PLCC4 SMD -BG. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.1V Blue, 3.1V Green, package / case 4-PLCC, color Blue, Green.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Green |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 300mcd Blue, 1000mcd Green |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.1V Blue, 3.1V Green |
| Current - Test | 20mA Blue, 20mA Green |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 470nm Blue, 525nm Green |
| Wavelength - Peak | 465nm Blue, 515nm Green |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 1.95mm |
Submit your RFQ for L955QBTGC-2 and get a quote within 24 hours.
