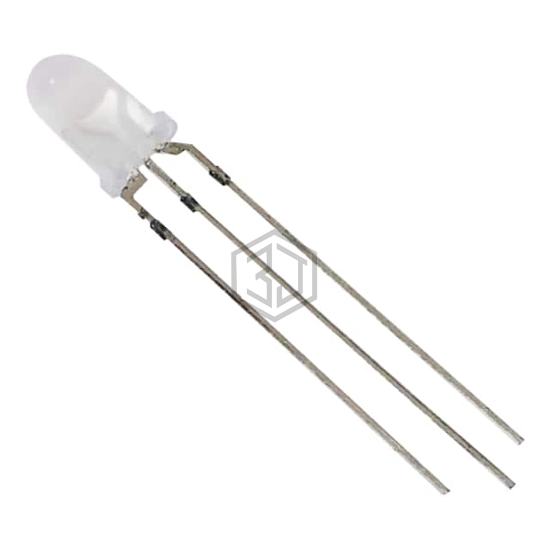

5MM RED&GREEN BI-COLOR LED LAMP
L519EGW is a LED Indication - Discrete manufactured by American Opto Plus LED. 5MM RED&GREEN BI-COLOR LED LAMP. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.1V Green, 2V Red, package / case Radial, color Green, Red.
In Stock: 6,349
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | - |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 15mcd Green, 20mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 565nm Green, 635nm Red |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Size / Dimension | 5.00mm Dia |
| Height (Max) | 9.60mm |
Submit your RFQ for L519EGW and get a quote within 24 hours.
