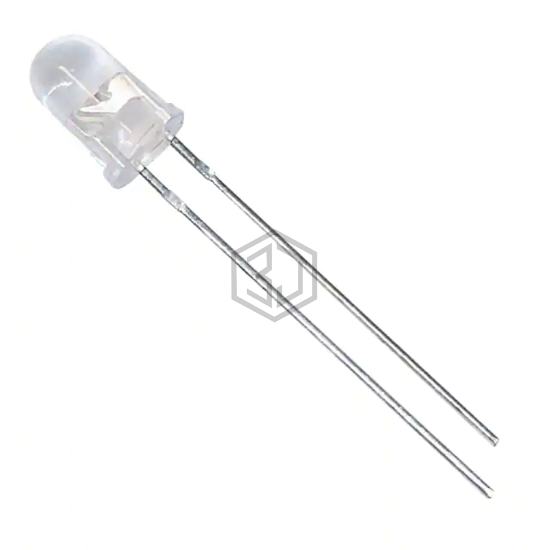

L513EC - American Opto Plus LED - LED Indication - Discrete

L513EC

American Opto Plus LED

5MM RED LED LAMP

L513EC is a LED Indication - Discrete manufactured by American Opto Plus LED. 5MM RED LED LAMP. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.1V, package / case Radial, color Red.

In Stock: 5,692

Product Attributes

AttributeValue
Product StatusActive
ColorRed
ConfigurationStandard
Lens Color-
Lens TransparencyClear
Millicandela Rating75mcd
Lens StyleRound with Domed Top
Lens Size5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)2.1V
Current - Test20mA
Viewing Angle20°
Mounting TypeThrough Hole
Wavelength - Dominant-
Wavelength - Peak635nm
Features-
Package / CaseRadial
Supplier Device PackageT-1 3/4 (5mm)
Size / Dimension5.00mm Dia
Height (Max)10.10mm

Frequently Asked Questions

L513EC is a LED Indication - Discrete manufactured by American Opto Plus LED. 5MM RED LED LAMP

The mounting type of L513EC is Through Hole.

The supply voltage of L513EC is 2.1V.

The package type of L513EC is Radial.

The wavelength of L513EC is 635nm.
