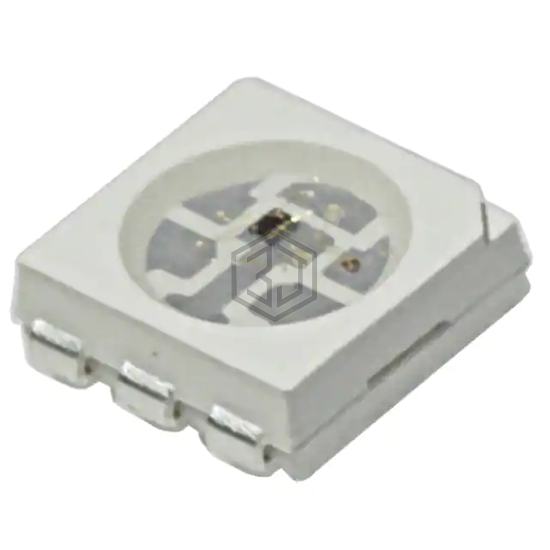

PLCC TOP VIEW SMD - RGB + IC
L381L-LEPGBC3DI is a LED Indication - Discrete manufactured by American Opto Plus LED. PLCC TOP VIEW SMD - RGB + IC. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 5V Red, 5V Green, 5V Blue, package / case 2020 (5050 Metric), color Red, Green, Blue (RGB).
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | - |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 500mcd Red, 650mcd Green, 190mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 5V Red, 5V Green, 5V Blue |
| Current - Test | - |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 4.95mm L x 4.95mm W |
| Height (Max) | 1.80mm |
Submit your RFQ for L381L-LEPGBC3DI and get a quote within 24 hours.
