PLCC TOP VIEW SMD - RGB + IC

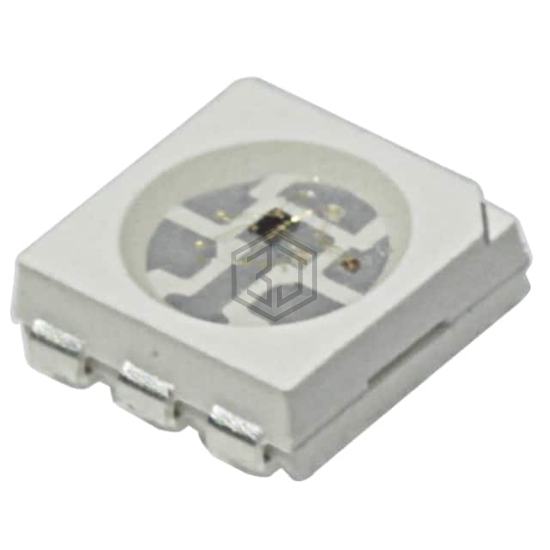

L381L-LEPGB3DI6 is a LED Indication - Discrete manufactured by American Opto Plus LED. PLCC TOP VIEW SMD - RGB + IC. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 5V, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | - |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 500mcd Red, 1000mcd Green, 200mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 4.10mm Dia |
| Voltage - Forward (Vf) (Typ) | 5V |
| Current - Test | - |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 523nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-SMD |
| Size / Dimension | 5.40mm L x 5.00mm W |
| Height (Max) | 1.80mm |
Submit your RFQ for L381L-LEPGB3DI6 and get a quote within 24 hours.
