1X1X0.6MM RGB SMD LED

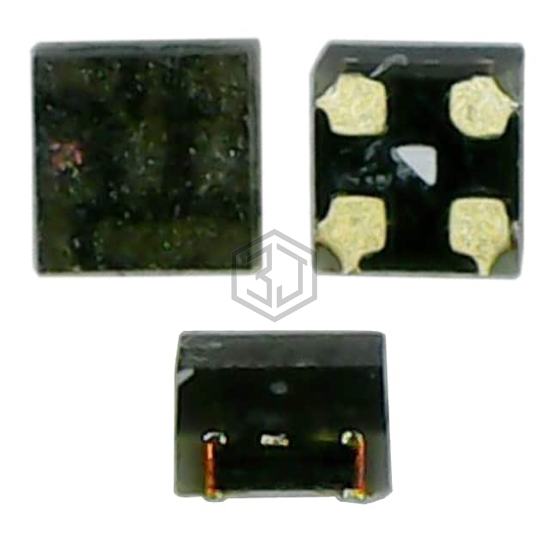

L201DS-QEPGBG2S is a LED Indication - Discrete manufactured by American Opto Plus LED. 1X1X0.6MM RGB SMD LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3V Green, 3V Blue, package / case 4-SMD, color Red, Green, Blue (RGB).
In Stock: 1,934,039
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Black |
| Lens Transparency | Diffused |
| Millicandela Rating | 21mcd Red, 66mcd Green, 14mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3V Green, 3V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 115° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 526nm Green, 467nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-SMD |
| Supplier Device Package | SMD |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Height (Max) | 0.70mm |
Submit your RFQ for L201DS-QEPGBG2S and get a quote within 24 hours.
