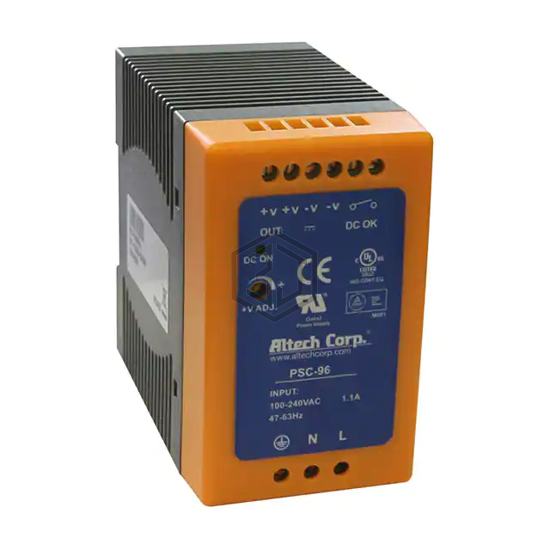

AC/DC CONVERTER 12V 90W
PSC-9612 is a Industrial, DIN Rail Power Supplies manufactured by Altech Corporation. AC/DC CONVERTER 12V 90W. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 7.5A, size / dimension 3.90" L x 2.17" W x 3.54" H (99.0mm x 55.0mm x 90.0mm), number of outputs 1.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 88 ~ 264 VAC |
| DC Voltage - Input (Min) | 124V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 7.5A |
| Power (Watts) | 90W |
| Voltage - Isolation | 4.242 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.90" L x 2.17" W x 3.54" H (99.0mm x 55.0mm x 90.0mm) |
| Approval Agency | CE, cULus, TUV, UR |
| Standard Number | 508; 60950-1 |
Submit your RFQ for PSC-9612 and get a quote within 24 hours.
