AC/DC CONVERTER 24V 41W

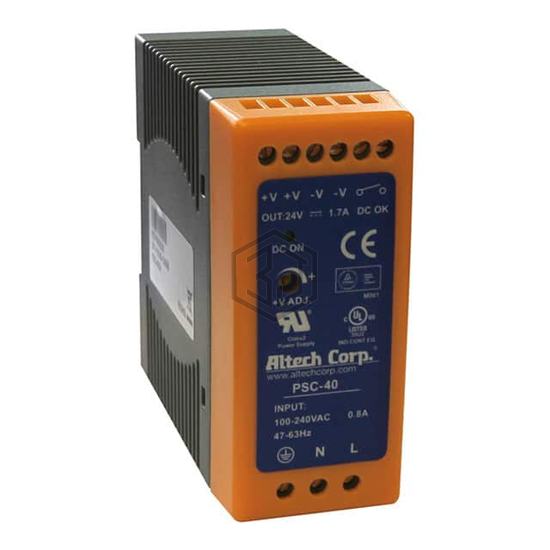

PSC-4024 is a Industrial, DIN Rail Power Supplies manufactured by Altech Corporation. AC/DC CONVERTER 24V 41W. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 1.7A, size / dimension 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm), number of outputs 1.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 88 ~ 264 VAC |
| DC Voltage - Input (Min) | 124V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.7A |
| Power (Watts) | 41W |
| Voltage - Isolation | 4.242 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 84% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) |
| Approval Agency | CE, cULus, TUV, UR |
| Standard Number | 508; 60950-1 |
Submit your RFQ for PSC-4024 and get a quote within 24 hours.
