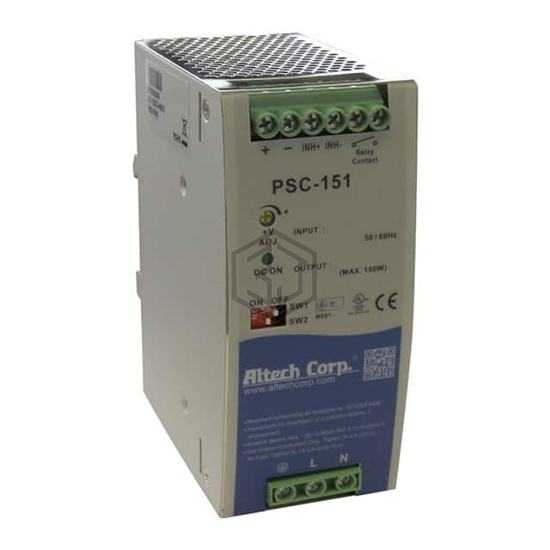

AC/DC CONVERTER 24V 151W
PSC-15124 is a Industrial, DIN Rail Power Supplies manufactured by Altech Corporation. AC/DC CONVERTER 24V 151W. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 6.3A, size / dimension 3.93" L x 2.19" W x 4.93" H (99.8mm x 55.5mm x 125.2mm), number of outputs 1.
In Stock: 7,922
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 88 ~ 264 VAC |
| DC Voltage - Input (Min) | 124V |
| DC Voltage - Input (Max) | 373V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6.3A |
| Power (Watts) | 151W |
| Voltage - Isolation | 4.242 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Remote On/Off, Universal Input |
| Size / Dimension | 3.93" L x 2.19" W x 4.93" H (99.8mm x 55.5mm x 125.2mm) |
| Approval Agency | CE, cULus, TUV |
| Standard Number | 508; 60950-1 |
Submit your RFQ for PSC-15124 and get a quote within 24 hours.
