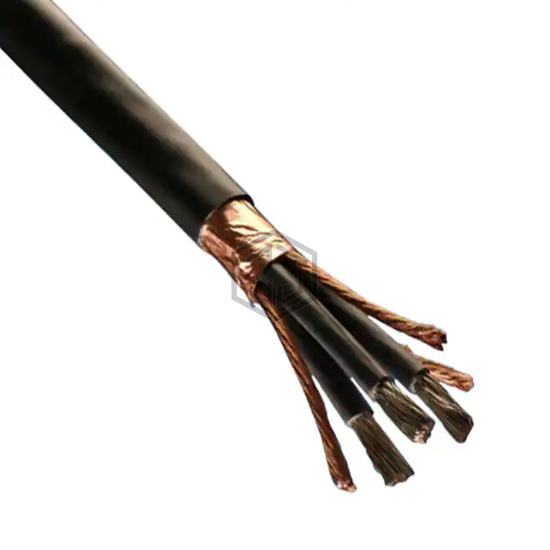

V16010 BK007
10AWG 4C VFD CABLE
V16010 BK007 is a Multiple Conductor Cables manufactured by Alpha Wire. 10AWG 4C VFD CABLE. Key specifications: operating temperature -40°C ~ 90°C, voltage 600 V, wire gauge 10 AWG.
In Stock: 13
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Cable Type | Multi-Conductor |
| Number of Conductors | 4 |
| Wire Gauge | 10 AWG |
| Conductor Strand | 105/30 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.750" (19.05mm) |
| Shield Type | Foil, Braid |
| Length | 50.00' (15.24m) |
| Jacket Color | Black |
| Ratings | - |
| Features | Drain Wire |
| Voltage | 600 V |
| Operating Temperature | -40°C ~ 90°C |
| Usage | Motor Supply, Variable Frequency Drive (VFD) |
| Jacket (Insulation) Thickness | 0.0850" (2.159mm) |
Frequently Asked Questions
V16010 BK007 is a Multiple Conductor Cables manufactured by Alpha Wire. 10AWG 4C VFD CABLE
The operating temperature range of V16010 BK007 is -40°C ~ 90°C.
The supply voltage of V16010 BK007 is 600 V.
The wire or cable specification of V16010 BK007 is 10 AWG.
Yes, V16010 BK007 is listed as Obsolete. Consider requesting a quote for alternative parts.
