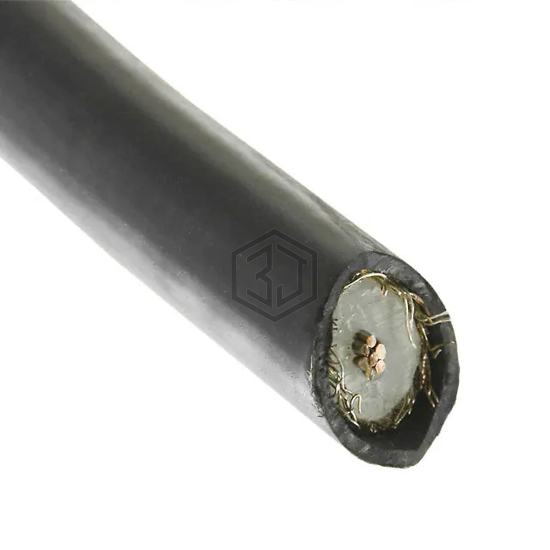

9214 BK005
CABLE COAXIAL RG214 13AWG 100'
9214 BK005 is a Coaxial Cables (RF) manufactured by Alpha Wire. CABLE COAXIAL RG214 13AWG 100'. Key specifications: wire gauge 13 AWG (1.83mm²), impedance 50 Ohms.
In Stock: 8
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Cable Type | Coaxial |
| Cable Group | RG-214 |
| Wire Gauge | 13 AWG (1.83mm²) |
| Conductor Strand | 7 Strands / 0.0296" |
| Jacket (Insulation) Material | Non Contaminating Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.425" (10.80mm) |
| Shield Type | Double Braid |
| Impedance | 50 Ohms |
| Length | 100.0' (30.48m) |
| Jacket Color | Black |
| Usage | - |
| Features | - |
Frequently Asked Questions
9214 BK005 is a Coaxial Cables (RF) manufactured by Alpha Wire. CABLE COAXIAL RG214 13AWG 100'
The wire or cable specification of 9214 BK005 is 13 AWG (1.83mm²).
The resistance of 9214 BK005 is 50 Ohms.
