3J LIMITED
9188A WH001

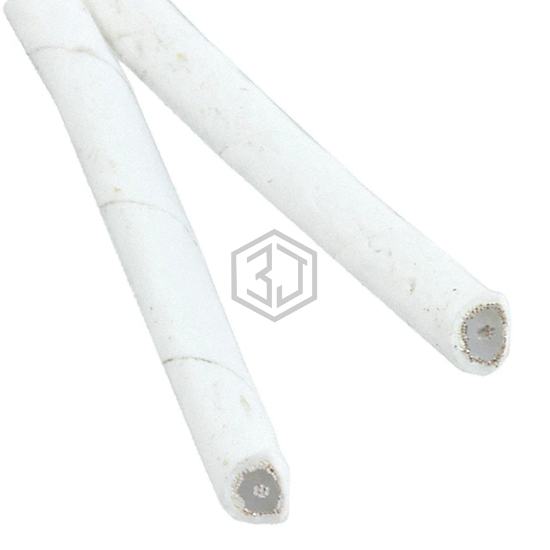

CABLE COAXIAL RG188A 25AWG 1000'
9188A WH001 is a Coaxial Cables (RF) manufactured by Alpha Wire. CABLE COAXIAL RG188A 25AWG 1000'. Key specifications: wire gauge 25 AWG, impedance 50 Ohms.
In Stock: 14
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Cable Type | Coaxial |
| Cable Group | RG-188A |
| Wire Gauge | 25 AWG |
| Conductor Strand | 7 Strands / 0.0067" |
| Jacket (Insulation) Material | Polytetrafluoroethylene (PTFE) |
| Jacket (Insulation) Diameter | 0.105" (2.67mm) |
| Shield Type | Braid |
| Impedance | 50 Ohms |
| Length | 1000.0' (304.80m) |
| Jacket Color | White |
| Usage | - |
| Features | - |
Frequently Asked Questions
9188A WH001 is a Coaxial Cables (RF) manufactured by Alpha Wire. CABLE COAXIAL RG188A 25AWG 1000'
The wire or cable specification of 9188A WH001 is 25 AWG.
The resistance of 9188A WH001 is 50 Ohms.
