3J LIMITED
9174 BK005

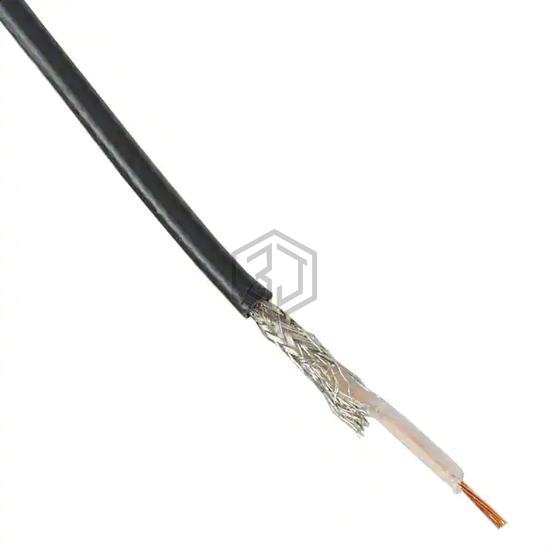

CABLE COAXIAL RG174 26AWG 100'
9174 BK005 is a Coaxial Cables (RF) manufactured by Alpha Wire. CABLE COAXIAL RG174 26AWG 100'. Key specifications: wire gauge 26 AWG (0.14mm²), impedance 50 Ohms.
In Stock: 60
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Cable Type | Coaxial |
| Cable Group | RG-174 |
| Wire Gauge | 26 AWG (0.14mm²) |
| Conductor Strand | 7 Strands / 34 AWG |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.100" (2.54mm) |
| Shield Type | Braid |
| Impedance | 50 Ohms |
| Length | 100.0' (30.48m) |
| Jacket Color | Black |
| Usage | - |
| Features | - |
Frequently Asked Questions
9174 BK005 is a Coaxial Cables (RF) manufactured by Alpha Wire. CABLE COAXIAL RG174 26AWG 100'
The wire or cable specification of 9174 BK005 is 26 AWG (0.14mm²).
The resistance of 9174 BK005 is 50 Ohms.
