3J LIMITED
9008 BK005

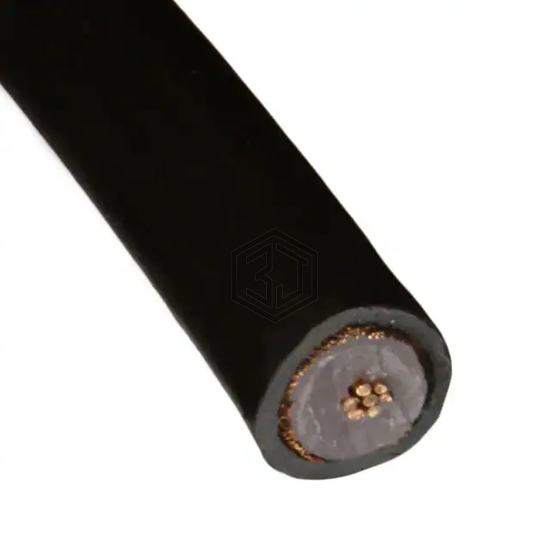

CABLE COAXIAL RG8 13AWG 100'
9008 BK005 is a Coaxial Cables (RF) manufactured by Alpha Wire. CABLE COAXIAL RG8 13AWG 100'. Key specifications: wire gauge 13 AWG (2.88mm²), impedance 52 Ohms.
In Stock: 9
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Cable Type | Coaxial |
| Cable Group | RG-8 |
| Wire Gauge | 13 AWG (2.88mm²) |
| Conductor Strand | 7 Strands / 21 AWG |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.405" (10.29mm) |
| Shield Type | Braid |
| Impedance | 52 Ohms |
| Length | 100.0' (30.48m) |
| Jacket Color | Black |
| Usage | Network |
| Features | - |
Frequently Asked Questions
9008 BK005 is a Coaxial Cables (RF) manufactured by Alpha Wire. CABLE COAXIAL RG8 13AWG 100'
The wire or cable specification of 9008 BK005 is 13 AWG (2.88mm²).
The resistance of 9008 BK005 is 52 Ohms.
