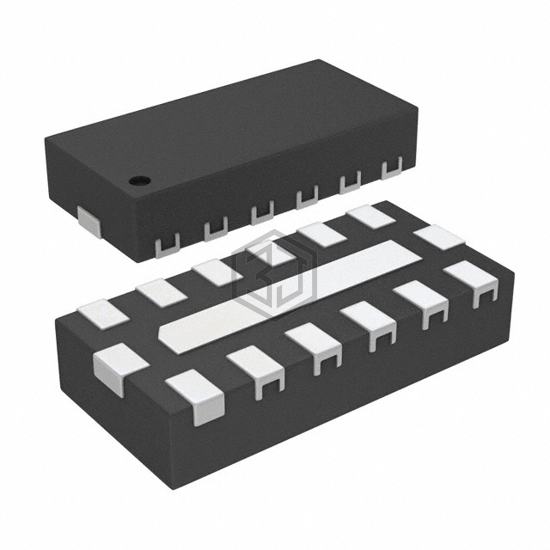

Alpha & Omega Semiconductor Inc.
FILTER RC(PI) 100 OHM/8PF SMD
AOZ8175DI is a EMI/RFI Filters (LC, RC Networks) manufactured by Alpha & Omega Semiconductor Inc.. FILTER RC(PI) 100 OHM/8PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 5V, package / case 12-UFDFN Exposed Pad.
In Stock: 6,517
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | 220MHz (Cutoff) |
| Attenuation Value | -20dB @ 1GHz ~ 3GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | 20 mA |
| Values | R = 100Ohms, C = 8pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 5V |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad |
| Size / Dimension | 0.118" L x 0.053" W (3.00mm x 1.35mm) |
| Height | 0.024" (0.60mm) |
Submit your RFQ for AOZ8175DI and get a quote within 24 hours.
