Alpha & Omega Semiconductor Inc.

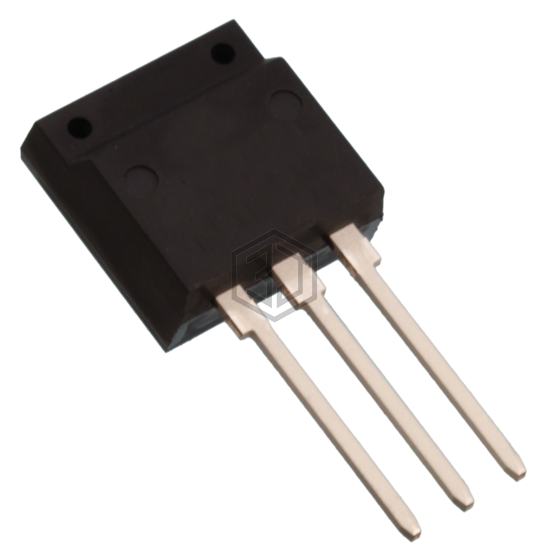

MOSFET N-CH 600V 12A TO262F
AOWF12T60P is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 600V 12A TO262F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.
In Stock: 975
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 520mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2028 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 28W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-262F |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
Submit your RFQ for AOWF12T60P and get a quote within 24 hours.
