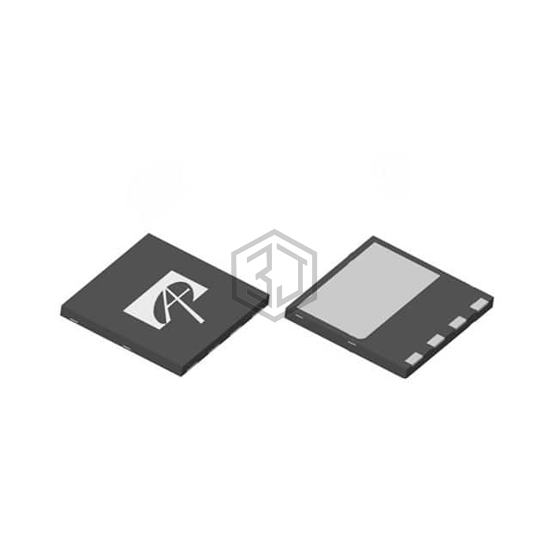

Alpha & Omega Semiconductor Inc.
MOSFET N-CH 600V 520MA/12A 4DFN
AOV15S60 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 600V 520MA/12A 4DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-PowerTSFN.
In Stock: 1,561
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 520mA (Ta), 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15.6 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 717 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 8.3W (Ta), 208W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-DFN (8x8) |
| Package / Case | 4-PowerTSFN |
