Alpha & Omega Semiconductor Inc.

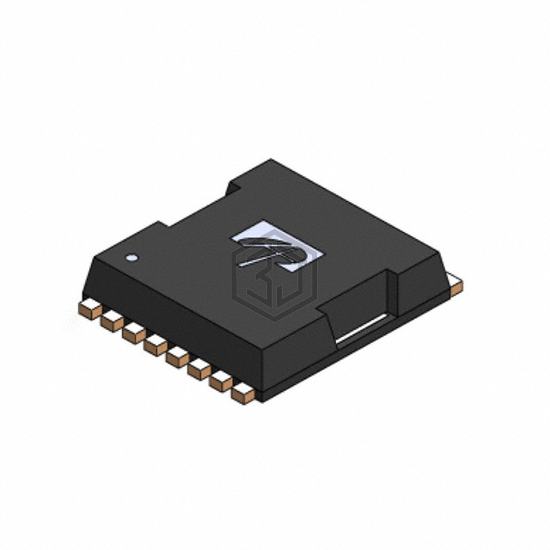

MOSFET N-CH 60V 73.5A/400A TOLLA
AOTL66608 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 60V 73.5A/400A TOLLA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.
In Stock: 1,837
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 73.5A (Ta), 400A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 0.85mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 300 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 14200 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 8.3W (Ta), 500W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TOLLA |
| Package / Case | 8-PowerSFN |
Submit your RFQ for AOTL66608 and get a quote within 24 hours.
