Alpha & Omega Semiconductor Inc.
MOSFET N-CH 100V 31.3A/100A 8DFN

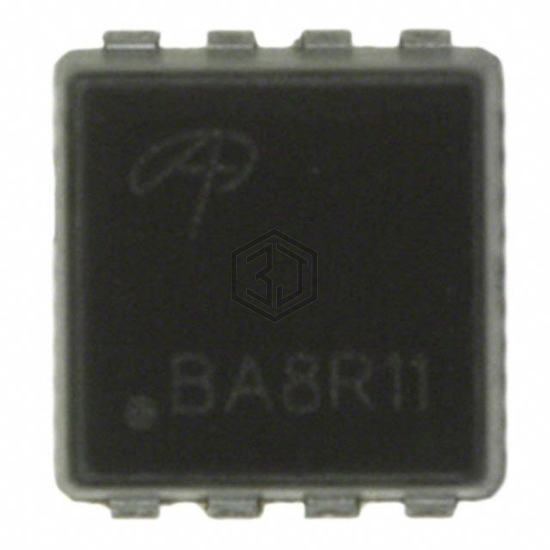

AONS66966 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 100V 31.3A/100A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSMD, Flat Leads.
In Stock: 2,999
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 31.3A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 3.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5325 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 6.2W (Ta), 215W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6) |
| Package / Case | 8-PowerSMD, Flat Leads |
Submit your RFQ for AONS66966 and get a quote within 24 hours.
