Alpha & Omega Semiconductor Inc.
MOSFET P-CH 20V 26.5A/34A 8DFN

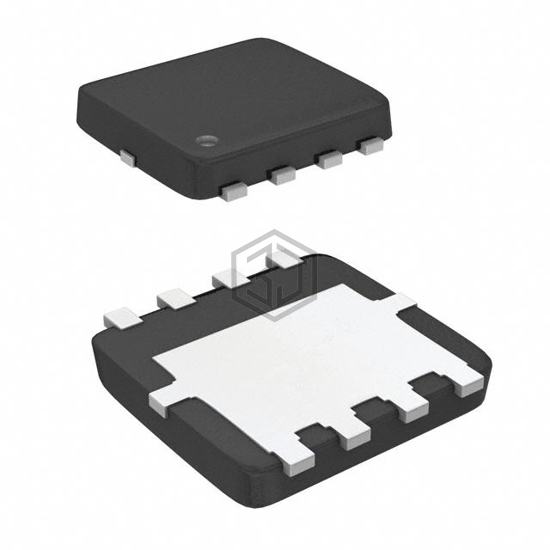

AONR21117 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 20V 26.5A/34A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 59
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 26.5A (Ta), 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 20A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 88 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 6560 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta), 43W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN-EP (3x3) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for AONR21117 and get a quote within 24 hours.
