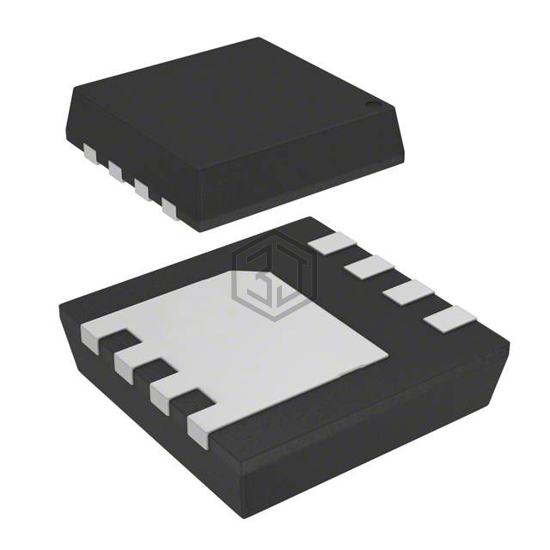

Alpha & Omega Semiconductor Inc.
MOSFET N-CH 30V 36.5A/50A 8DFN
AON7318 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 30V 36.5A/50A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.
In Stock: 7,548
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 36.5A (Ta), 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.95mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 52 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2840 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 4.1W (Ta), 39W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN-EP (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for AON7318 and get a quote within 24 hours.
