Alpha & Omega Semiconductor Inc.
MOSFET N-CH 20V 30A/46A ULTRASO8

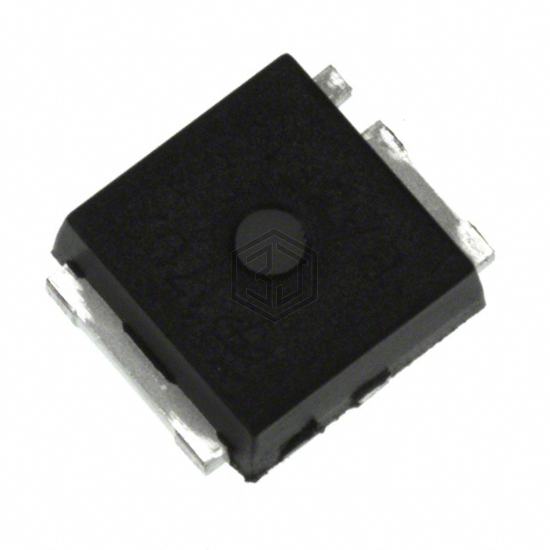

AOL1404G is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 20V 30A/46A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-PowerSMD, Flat Leads.
In Stock: 8,288
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 20A, 4.5V |
| Vgs(th) (Max) @ Id | 1.25V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 3300 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 6.2W (Ta), 50W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | UltraSO-8™ |
| Package / Case | 3-PowerSMD, Flat Leads |
Submit your RFQ for AOL1404G and get a quote within 24 hours.
