Alpha & Omega Semiconductor Inc.

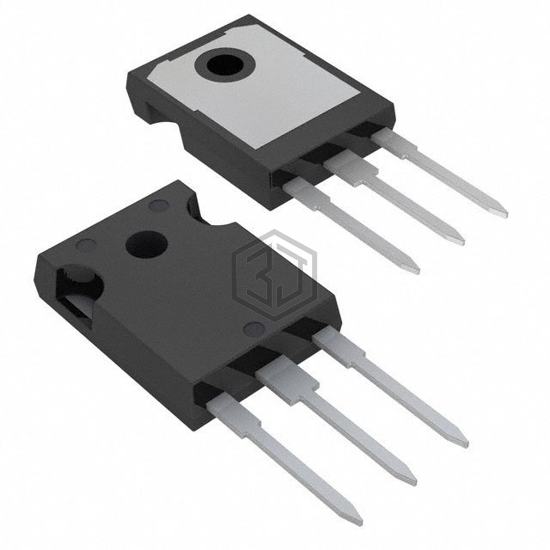

MOSFET N-CH 60V 58.5A/120A TO247
AOK66613 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 60V 58.5A/120A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.
In Stock: 590
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 58.5A (Ta), 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5300 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 15.6W (Ta), 312W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 |
| Package / Case | TO-247-3 |
Submit your RFQ for AOK66613 and get a quote within 24 hours.
