Alpha & Omega Semiconductor Inc.

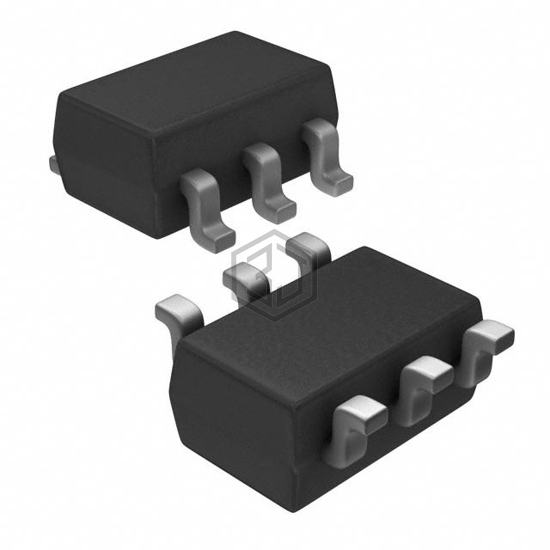

MOSFET P-CH 30V 5A 6TSOP
AO6401A is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 30V 5A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457.
In Stock: 7,115
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 44mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1180 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-TSOP |
| Package / Case | SC-74, SOT-457 |
Submit your RFQ for AO6401A and get a quote within 24 hours.
