Allied Components International
7.3mH Min,9.3A Common Mode Choke

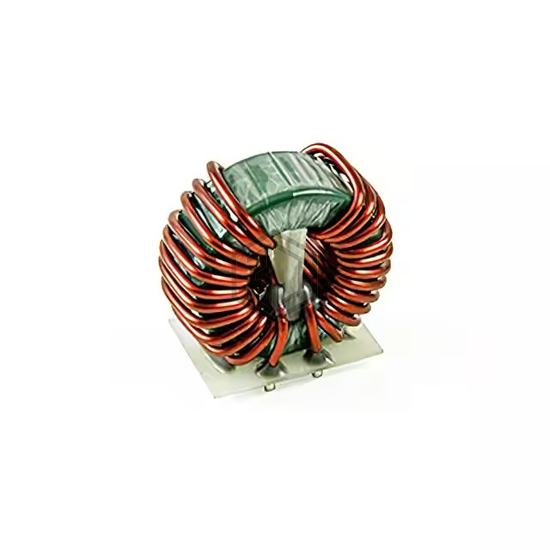

VCMBE8118-RC is a Common Mode Chokes manufactured by Allied Components International. 7.3mH Min,9.3A Common Mode Choke. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Vertical, 4 PC Pin, size / dimension 1.650" L x 0.800" W (41.91mm x 20.32mm).
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | - |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 7.3 mH @ 1 kHz |
| Current Rating (Max) | 9.3A |
| DC Resistance (DCR) (Max) | 32mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.650" L x 0.800" W (41.91mm x 20.32mm) |
| Height (Max) | 1.650" (41.91mm) |
| Package / Case | Vertical, 4 PC Pin |
Submit your RFQ for VCMBE8118-RC and get a quote within 24 hours.
