2.5mH Min 2.4A Common Mode Choke

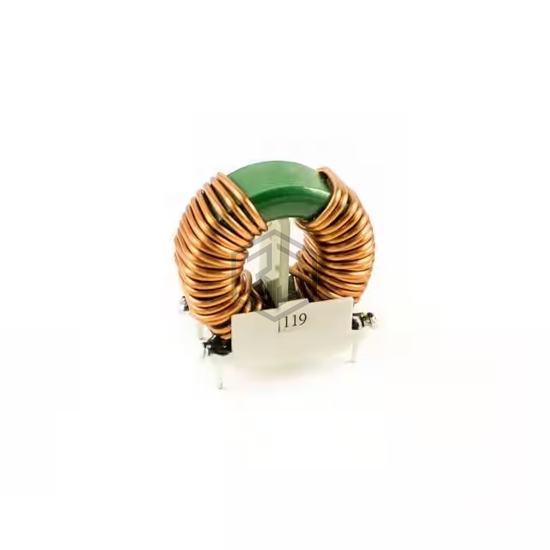

VCMB8102-RC is a Common Mode Chokes manufactured by Allied Components International. 2.5mH Min 2.4A Common Mode Choke. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Vertical, 4 PC Pin, size / dimension 0.760" L x 0.425" W (19.30mm x 10.80mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | - |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 2.5 mH @ 1 kHz |
| Current Rating (Max) | 2.4A |
| DC Resistance (DCR) (Max) | 90mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.760" L x 0.425" W (19.30mm x 10.80mm) |
| Height (Max) | 0.900" (22.86mm) |
| Package / Case | Vertical, 4 PC Pin |
