Allied Components International
6.8mH @1KHz Common Mode Choke

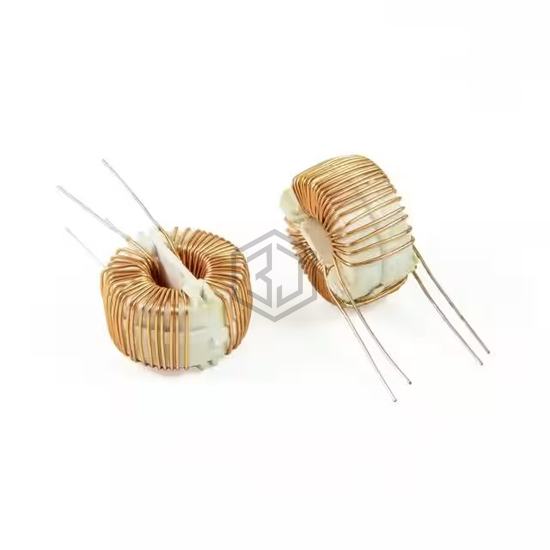

VCM7116-RC is a Common Mode Chokes manufactured by Allied Components International. 6.8mH @1KHz Common Mode Choke. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Vertical, No Base, 4 PC Pin, size / dimension 0.800" Dia x 0.550" W (20.32mm x 13.97mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | - |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 6.8 mH @ 1 kHz |
| Current Rating (Max) | 2A |
| DC Resistance (DCR) (Max) | 0.2mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.800" Dia x 0.550" W (20.32mm x 13.97mm) |
| Height (Max) | - |
| Package / Case | Vertical, No Base, 4 PC Pin |
Submit your RFQ for VCM7116-RC and get a quote within 24 hours.
