Allied Components International
.85mH @1KHz Common Mode Choke

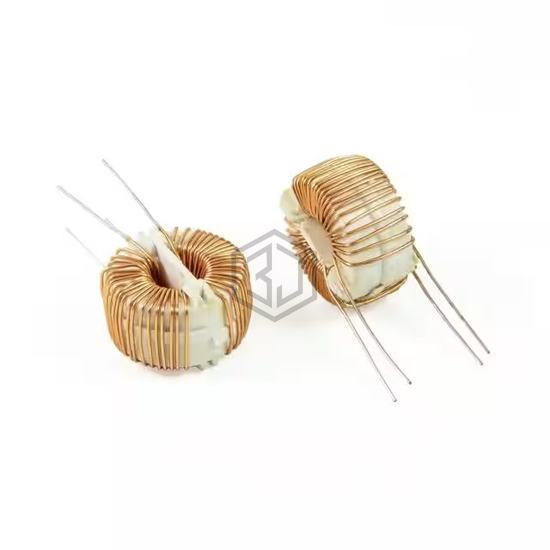

VCM7111-RC is a Common Mode Chokes manufactured by Allied Components International. .85mH @1KHz Common Mode Choke. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Vertical, No Base, 4 PC Pin, size / dimension 0.600" Dia x 0.450" W (15.24mm x 11.43mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | - |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 850 µH @ 1 kHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 0.03mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.600" Dia x 0.450" W (15.24mm x 11.43mm) |
| Height (Max) | - |
| Package / Case | Vertical, No Base, 4 PC Pin |
Submit your RFQ for VCM7111-RC and get a quote within 24 hours.
