Allied Components International

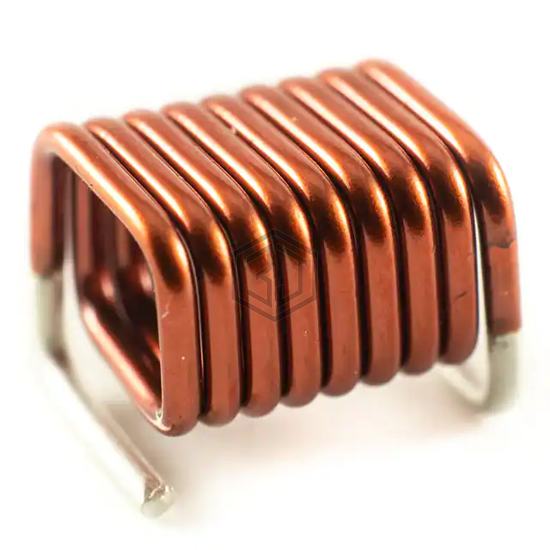

160NH 5% SQ. AIR CORE INDUCTOR
SQAC2222-161NJ-RC is a Fixed Inductors manufactured by Allied Components International. 160NH 5% SQ. AIR CORE INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.7 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 160 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 5.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.25mOhm Max |
| Q @ Freq | 140 @ 50MHz |
| Frequency - Self Resonant | 1GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 400 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.290" L x 0.220" W (7.37mm x 5.59mm) |
| Height - Seated (Max) | 0.234" (5.95mm) |
Submit your RFQ for SQAC2222-161NJ-RC and get a quote within 24 hours.
