Allied Components International

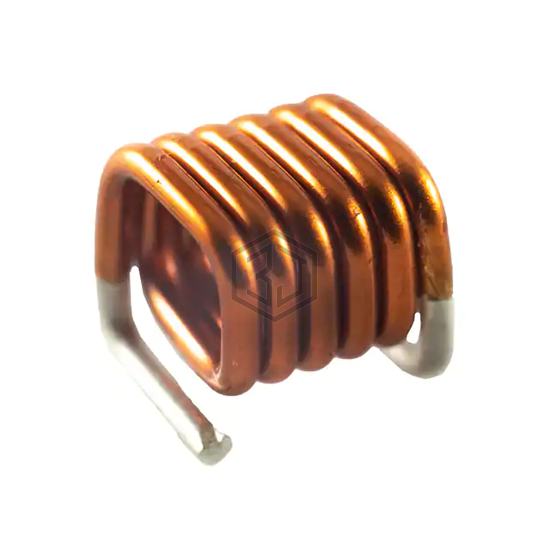

82NH SMD AIR CORE INDUCTOR
SQAC1515-82NJ-RC is a Fixed Inductors manufactured by Allied Components International. 82NH SMD AIR CORE INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.6 A.
In Stock: 114,006
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 82 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 5.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9.4mOhm Max |
| Q @ Freq | 230 @ 400MHz |
| Frequency - Self Resonant | 1.79GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 400 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.230" L x 0.140" W (5.84mm x 3.56mm) |
| Height - Seated (Max) | 0.154" (3.91mm) |
