Allied Components International

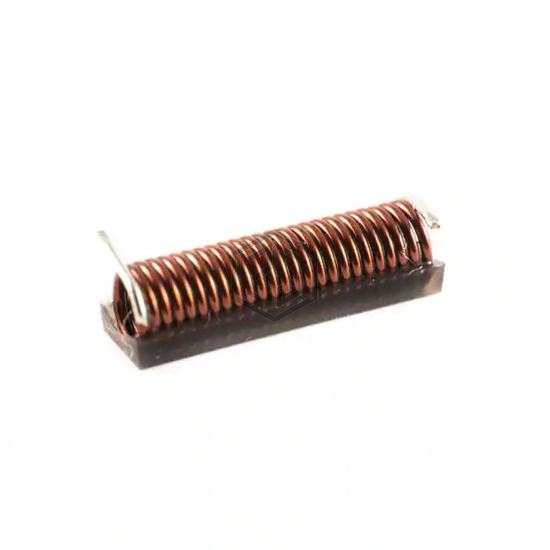

300NH 15% SMD AIR COIL INDUCTOR
SMAC60-R30L-RC is a Fixed Inductors manufactured by Allied Components International. 300NH 15% SMD AIR COIL INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 4,505
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 300 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 49mOhm Max |
| Q @ Freq | 1 @ 200MHz |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 200 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.465" L x 0.190" W (11.80mm x 4.83mm) |
| Height - Seated (Max) | 0.140" (3.55mm) |
Submit your RFQ for SMAC60-R30L-RC and get a quote within 24 hours.
